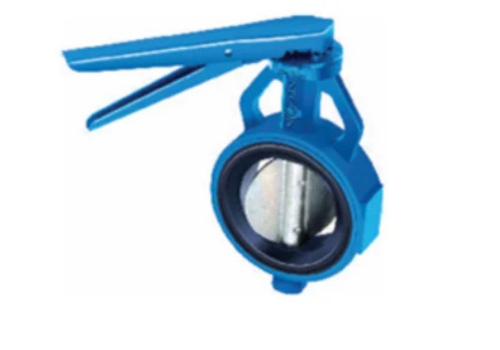

Wefer Type Design is a sophisticated engineering approach utilized primarily in fluid control systems, particularly in valves and piping applications. This design is characterized by its unique geometry and structural configurations that enhance flow efficiency, pressure stability, and overall system reliability. Through careful consideration of fluid dynamics and material properties, Wefer Type Design aims to optimize operational performance while minimizing energy consumption and maintenance needs.
One notable feature of Wefer Type Design is its ability to achieve superior flow characteristics. The design often includes streamlined passages that reduce turbulence and pressure drops, ensuring that fluids move smoothly through the system. Additionally, this design is robust and durable, making it suitable for various applications, including those in demanding environments such as chemical processing and water treatment. As a result, users benefit from extended service life and reduced operational costs, underscoring the design’s practicality.
Features
- Streamlined Geometry
- Compact Construction
- Durable Materials
- Versatile Adaptability
- Enhanced Control Features
- Easy Maintenance
Applications
- Chemical Processing
- Water and Wastewater Treatment
- Oil and Gas Industry
- HVAC Systems
- Pharmaceuticals
- Food and Beverage
Specifications
| Design & Mfg. Standard | EN 583/API 609/ BS 5155/MSS SP67 |
| Testing Standard | AP 598/6:6755 PART-1/EN 1226-1 |
| Class | PN1O/PN16 |
| Size | 1-1/2" to 24" (DN-40 to DN600) |
| Design Type | Wafer Type: |
| Material of Composition | Cast Iron/Cast Steel/CF8/CF8M |
| Optional Disc | Cast Iron/Cast Steel/CF8/CF8M |
| Lining | Nitrile, Neoprene, EPDM, Hypalon, Silicon, Viton, PTFE |
| Operation | Nitrile, Neoprene, EPDM, Hypalon, Silicon, Viton, PTFE Operation: Lever, Gear, Bare stem, Pneumatic Actuator, Electrical Actuator, End Connection: Compatible to 125/150, BS10 Table D/E/F, PNIQ, PNIG Flanges |
| Moke / Brand | JK Flow |
