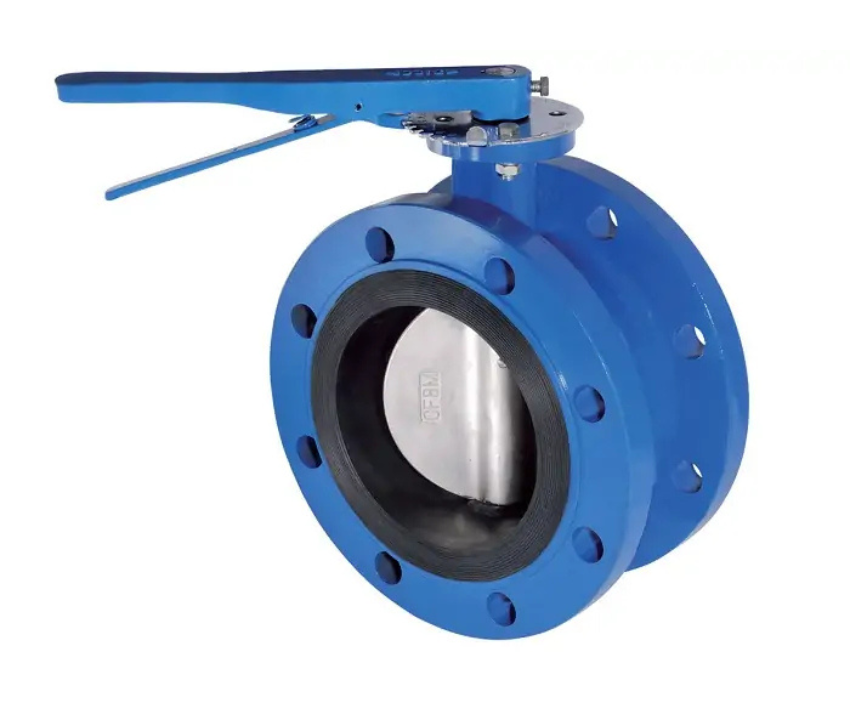

Double flanged type design is a critical connection technique widely utilized in various engineering and industrial applications. This design features two flanges on each end of a component, such as a pipe or equipment, which allows for robust and secure joint connections. The dual-flange system enhances the overall structural integrity of assemblies by distributing loads more evenly and minimizing stress concentrations. As a result, this design is particularly beneficial in systems that undergo high pressure or fluctuating temperatures, making it a preferred choice in sectors such as oil and gas, water treatment, and HVAC.
One of the standout advantages of double flanged type design is its ability to provide exceptional sealing and resistance to leaks. The flanges create a tight seal when bolted together, which is essential for maintaining the integrity of fluid and gas transport systems. Additionally, the design allows for ease of maintenance and disassembly, making it convenient for replacing components or performing repairs without disrupting the entire system. The versatility of double flanged connections makes them suitable for a range of materials, including metal, plastic, and composite, accommodating diverse operational requirements.
Features
- Robust Structural Integrity
- Enhanced Sealing Capability
- Ease of Installation and Maintenance
- Versatile Material Compatibility
- Corrosion Resistance Options
- Reduced Maintenance Costs
Applications
- Oil and Gas Industry
- Food and Beverage Industry
- Pharmaceutical and Biotech Industries
- Power Generation
- Mining and Mineral Processing
- HVAC Systems
Specifications
| Design & Mfg. Standard | 85 5155/API 609, MSS SP-67 |
| Testing Standard | BS 6755-1/AP 598/AWWA C-504-87 |
| Class | PN10/PN16 |
| Size | 2 to 24" (DN50 to DN600) |
| End Connection | Flanged Type |
| Material of Composition | Cast iron/Cast Steel/CF8/CF8M |
| Optional: Disc | Cast iron/Cast Steel/CF8/CF8M |
| Lining | Nitrile, Neoprene, EPDM, Hypalon, Silicon, Viton, Two Piece Stem Design |
| Operation | Lever, Gear, Bare stem, Pneumatic/Electric Actuator |
| Make/Brand | JK Flow |
