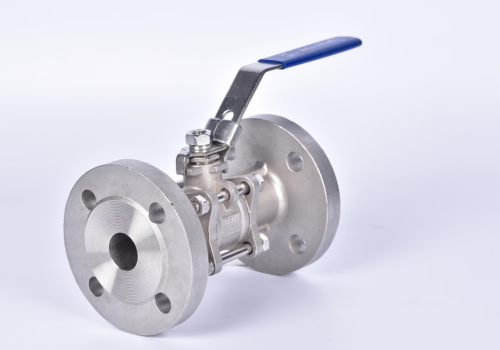

The Three Piece Flanged End Full Bore Valve is designed for industries requiring maximum flow efficiency and easy maintenance. Its full bore design ensures minimal pressure drop, allowing unrestricted flow of liquids and gases. The flanged end connection provides a secure and leak-proof fit, making it suitable for high-pressure and high-temperature applications.
This valve features a three-piece body design, allowing for easy disassembly and maintenance without removing the entire valve from the pipeline. Constructed from high-quality materials, it offers excellent corrosion resistance, durability, and long service life. Its tight sealing mechanism ensures reliable shut-off, preventing leakage and ensuring smooth operation.
Features
- Smooth & Efficient Operation
- Versatile Applications
- Long Service Life
- Multiple Operation Modes
- Leak-Proof Sealing
- Corrosion & Pressure Resistant
Applications
- Pharmaceutical Industry
- Food & Beverage Industry
- HVAC Systems
- Marine & Shipbuilding
- Fire Protection Systems
- General Industrial Applications
Specifications
| Design & Mfg. Stadard | BS 5351 / API 6D / ASME B16.34 / ISO 17292 |
| Testing Standard | API 598 / BS 6765 |
| Class | 150# / 300# / 600# |
| Size | 1/2'' to 10'' (DN15 to DN250) |
| End Connection | Flanged End ASME B16.5 Class 150# / 300# / 600# |
| Material of Compsition | WCB / CF8 / CF3 / CF8M / CF3M / Cast Iron / Mild Steel |
| Optional | Reduced Port, Anti Static, ISO Mounted Pad, Lockable Handle |
| Operation | Lever, Gear, Pneumatic Actuator, Electrical Actuator |
| End Connection | Flanged End To BS16.5 150#/ Table-D / E / F / H |
| Make / Brand | JK Flow |
